8000lm DLP Installation Projectors
Product Description:
This is an 8000 lumen DLP laser projector with advanced professional installation features for higher education and corporate users. Its rich digital input interface can be connected to any computer or HD device. The full series has both manual and motorized lenses (lens shift, focus and zoom) and roll-free installation functions, allowing you to enjoy a flexible design and installation experience. The HDBaseT input interface provides a single connection for transmitting uncompressed full HD digital video, audio, Ethernet power and various control signals. This machine covers the Rec.709 HD color gamut with accurate color reproduction; wide color gamut and high brightness coexist; high consistency and good uniformity, which is very suitable for engineering installation and fusion applications.
Product feature:
. DLP technology 0.67" DMD chip
. Brightness up to 9000 lumens, contrast 3,000,000:1
· Laser light source life 25000 hours (ECO mode)
. Standard resolution 1920×1200 compatible with 1920×1080, 1280×800, 1024×768
. Dustproof IP6 level
· Support four-corner keystone adjustment
· Support color setting function
· RJ-45 interface supports multiple network controls
. ProjectorID combined with RS-232 interface can easily realize
centralized management
· Aviation-grade rigorous test standard 7" 24-hour uninterrupted
work
Specifications:
| model | MU9 | |
| Main parameters | Projection System | DLP projection system |
| Chip size | 0.67"DMD | |
| Standard resolution | 1920×1200 compatible with 4096x2160, 3840x2160, 1920×1080, 1280×800, 1024×768 | |
| Average brightness*1 | 8000lm | |
| Uniformity*2 | 90% | |
| Contrast*2 | 1,800:1 static; 10,0000:1 dynamic; 3,500,000:1 full dark | |
| Projection ratio | Auto, 4:3, 16:9, 16:10, 16:6, 2.35:1, LBX, Native | |
| Light source type | type | Laser phosphor materials |
| life | Standard mode: 20,000 hours Energy saving mode: 25,000 hours | |
| Color Wheel | 4-stage (RGBY) high-efficiency speed | |
| Color Matching | Change the color of the projected image by adjusting the individual color components of the image | |
| Color Adjustment | Adjustable colors include: red, green, blue, cyan, yellow, magenta, white (R / G / B / C / Y / M / W), support 7 colors HSG color adjustment | |
| Projection lens | Lens features | Support electric shift/focus/zoom function, support 5 position memory and lens lock function |
| Throw Ratio | 1.22-1.52 | |
| Lens throw distance | Support electric shift/focus/zoom functions,Support 1.1-1.7 times zoom | |
| Optional lenses | 0.55:1, 0.7-1.2:1, 1.2-1.5:1, 0.65-0.75:1, 1.52-2.92:1, 2.90-5.50:1 | |
| Lens shift | V: +/-50%, H: +/-15% | |
| Lens shift accuracy | 0.5 pixels per step | |
| Keystone Correction | Horizontal: ±30° / Vertical: ±30° | |
| Image display mode | China Red, Standard, High Gloss, Bright, Cinema, HDR, sRGB, DICOM SIM, Fusion, 3D, 2D High Speed, User | |
| Image Processing | Built-in edge blending and geometric correction functions | |
| 3D | Active 3D | |
| speaker | 10W×2 | |
| Installation | Horizontal/vertical 360° free installation | |
| Input Port | HDMI (V2.0 compatible 4K support HDCP*3)x2 | |
| HDMI (v1.4 supports HDCP*3) x1 | ||
| 15-pin Mini-Dsubx1 | ||
| HDBaseT*4x1 | ||
| 3D-Syncx1 | ||
| Audio x1 (3.5mm port) | ||
| Wired IR x1 (3.5mm port for wired remote control) | ||
| RJ45×1 (for network control) | ||
| RS232 (D-sub 9pin) x1 | ||
| USB-A×2(Wireless LAN&DC5V) | ||
| USB-B×1 (for software upgrade) | ||
| USB-B×1 (for software upgrade) | ||
| Output Port | 3D-Sync x1 | |
| USB-Ax1(DC5V) | ||
| 12V trigger (3.5mm port) x1 | ||
| Power specifications | 100-220V AC±10% 50/60Hz | |
| Machine power | Standard mode: 405W+/-15%, energy saving mode 195W+/-15% | |
| Body material | Molded Plastic | |
| Standby power | 0.5W | |
| Dimensions | 486mm (W) × 376mm (D) × 181mm (H) | |
| weight | About 12.7kg | |
| noise | Standard mode: 30dB Energy saving mode: 28dB | |
| Dust protection level | Optical system dustproof IP6X, whole machine dustproof IP5X | |
| Work Environment*5 | Working height | 0m-2500m (use high altitude mode when the altitude is over 1500m) |
| Operating temperature | 5-40℃, no condensation | |
| Operating humidity | 10%-85% | |
| Accessories | AAA alkaline batteries × 2, remote control × 1, power cord × 1, VGA cable × 1, quick installation guide, warranty card | |
| Notes: 1. The light output data value is measured at the center of the projected image. The measurement method is based on the international standard ISO/IEC 21118:2012. The data value is the average value. 2. The relevant measurement method and marking method are based on the IS021118 standard. The data value is the average value. 3. HDCP protocol HDCP (High-bandwidth Digital Content Protection): High-bandwidth digital content protection technology. 4. The HDBaseT trademark is owned by the HDBaseT Alliance. 5. If the projector is used at high altitudes and the ambient temperature exceeds 35°C; the service life of the optical components may be shortened: it is recommended to keep the temperature as low as possible. | ||

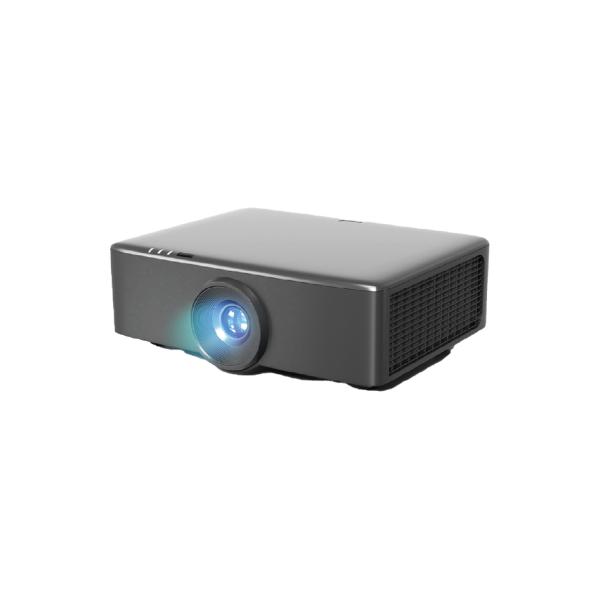

Projector appearance:
Application:
Widely used outdoor projection, extra-large meeting rooms/househall/Academic Lecture Hall/hospital hall
/big church/factory workshop and so on.
Mail shipping package: (packed with two 5-layer double corrugated carton)
Plug for global districts
Company profile:
testing
testing
Yeoan was established in 2009. We have been engaged in the research and development, production and sales of video and audio products since establishment.
After more than ten years of hard work, we have become one of the leaders in this field.
Our main mission is to provide the best visual and auditory experience through a series of excellent
Audio-visual solutions, so that you can see and hear every detail accurately and clearly in your life and work.
We stand on the principle of reputation first and quality first, and we offer customized service for each customer
in different regions and countries;
The most important is that we provide customers with accurate and stable delivery time, and efficient and high-quality after-sales guarantee.
Our products have a high reputation and occupancy rate both in domestic and foreign markets through continuous efforts.
FAQ:
1.Are you factory or trading company?
We are the factory which have engaged in the research and development, production and sales of audio and video products since
establishment.
2.What is your main products?
Main products including projectors and its screen.
3.Is OEM & ODM available?
We can provide customized solutions according your requirments,such
as personalized feature or package or brands based on the MOQ.
4.What is the delivery time?
Generally is about 25 - 30 days if the products are out of stock or
customized order.
5.What is the Payment?
TT(bank transfer), LC at sight all will be accepted.
6.Sample available?
Yes, we can provide a DEMO machine for testing.
|
|
