10000lm Large Venue Projectors 3LCD For Commercial Performances
Product Description:
The projector is a most efficient WUXGA large venue projector with
versatility in applications. This projector offers incredibly
brightness up to 10,000 lumens and supports motorized lenses, with
lens positioning memory to cater for any installation requirements.
Its maintenance-free reliable operation for up to 30,000 hours with
constant brightness and color uniformity by the optional IP6X
sealed engine design, making this series perfect for large venues,
such as auditoriums, lecture halls, sports arenas, and both rental
and staging markets.Large venue projectors are widely used in the following scenarios:
Large events: such as sports events, concerts, etc., providing
stunning visual effects.
Professional fields: such as education, media and government
agencies, for large conferences, exhibitions and presentations.
Outdoor environments: such as open-air cinemas, outdoor light and
shadow shows in theme parks, etc., providing unique visual
experiences
Product feature:
Laser light source;
High quality
• Closed optical machine
Specifications:
| Key parts | |||||
| Lens | optional | ||||
| Light source | Laser | ||||
| Brightness | |||||
| Brightness (Bright Mode) ( Ansi Lumens ) | 10000lm | ||||
| Overall Spec | |||||
| Panel | Display Panel | 3x0.76” | |||
| Display Technology | Liquid Crystal Display | ||||
| Native Resolution | WUXGA (1920 x 1200) | ||||
| Light source Life time | Normal mode | 20000hrs | |||
| ECO mode | 20000hrs | ||||
| Projection Lens | Zoom/Focus | Powered | |||
| Throw Ratio(16:10) | 1.30-3.02 | ||||
| F | F1.7~2.0 | ||||
| f | 21.8-49.8 | ||||
| Zoom Ratio | ‘2.3 | ||||
| Screen size (Performance guarantee range) | 50-500 inch (80-200 inch) | ||||
| Lens Shift V | +50%,-10% | ||||
| Lens Shift H | ±20% | ||||
| CR | Contrast Ratio(Min) | 100000:1 | |||
| Noise | Noise(dB) | Normal(90%): 35dB ECO1(75% ): 32dB ECO2(45% ): 32dB | |||
| Uniformity | Uniformity(Actual Min) -JISX6911 | 80% | |||
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal | |||
| Terminal(I/O port) | |||||
| Input | VGA | *1 | |||
| HDMI 1.4(IN) | *2 | ||||
| USB-A | *1 (5V/1.5A) | ||||
| USB-B | *1(Display) | ||||
| RJ45 | *1(Display) | ||||
| DVI-D | *1 | ||||
| HD BaseT | *1 | ||||
| HD-SDI(3G-SDI) | Optional | ||||
| Video | N/A | ||||
| Audio in (mini jack,3.5mm) | *1 (VGA/DVI-D share) | ||||
| Output | VGA/VGA IN | *1 | |||
| HDMI 1.4(OUT&IN) | *1 | ||||
| Audio out(mini-jack,3.5mm) | *1 | ||||
| Control | RS232 | *1 | |||
| RJ45 | *1 (Control) | ||||
| USB-B | *1 (For upgrade) | ||||
| Wired Remote(IN) | *1 | ||||
| Wired Remote(OUT&IN) | *1 | ||||
| General Spec | |||||
| Audio | Speaker | N/A | |||
| Cooling | Dust filter free | Closed inner circulation design | |||
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz | |||
| Power Consumption (Boost) (Max) | 850 | ||||
| Power Consumption (Normal) (Max) | 750 | ||||
| Power Consumption (ECO1) (Max) | 650 | ||||
| Power Consumption (ECO2) (Max) | 450 | ||||
| ECO Standby Mode Power Consumption | <0.5W | ||||
| Temp.&Humidity | Operating Temp. | 5 to 40deg.C | |||
| Operating humidity. | 20-80% | ||||
| Store Temp. | ‘-10 to 50deg.C | ||||
| Store Humidity. | 20-80% | ||||
| Other Functions | |||||
| Keystone | Keystone Correction | V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid ImageTune correction | |||
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi | |||
| LAN Control | LAN Control-RoomView (Crestron) | Yes | |||
| LAN Control-AMX Discovery | N/A | ||||
| LAN Control-PJ Link | Yes | ||||
| Scanning Frequency | H-Synch Range | 15~100KHz | |||
| V-Synch Range | 24~85Hz | ||||
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz | |||
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | ||||
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC, | |||
| Blank | Yes | ||||
| Suspend | Yes(5miniutes no singnal as default) | ||||
| Picture mode | Dynamic,Standard,Cinema,Colorboard, DICOM,blackboard(green) | ||||
| Cooling time | 0s,30s,Normal | ||||
| Closed caption | N/A | ||||
| High altitude | Yes(1400~3650m) | ||||
| Auto Ceiling | Yes | ||||
| D-Zoom | 1~33 | ||||
| Others | 360° projection | 360° all-round projection | |||
| Edge Blending | N/A | ||||
| Dimension&Weight | |||||
| MAX Dimensions (WxHxD mm) | 600*218*503.3 | ||||
| Net. Weight (KG) | ~24kg | ||||
| Single Packaging Box Dimensions (WxHxD mm) | 732*352*630 | ||||
| Single Gross. Weight (KG) | ~29kg | ||||
| Double Packaging Box Dimensions (WxHxD mm) | 805*452*716 | ||||
| Double Gross. Weight (KG) | ~33kg | ||||
| Accessory | |||||
| Manual Languages | Chinese,English | ||||
| Standard Accessaries | Power cord(3m,Black), Remote control&RC Battery | ||||
| Regulation List | |||||
| China | CCC | √ | |||
| CECP | X | ||||
| CEL-(2016/10-) | X | ||||
| WW | CB | √ | |||
| US | cTUVus | √ | |||
| FCC | √ | ||||
| FDA | √ | ||||
| EU | CE-EMC | √ | |||
| CE-LVD | √ | ||||
| CE-ERP | √ | ||||
| EMC Class | |||||
| EMC Class | Class A@3dBm | ||||
Projector appearance:
Application:
Widely used outdoor projection, extra-large meeting rooms/househall/Academic Lecture Hall/hospital hall
/big church/factory workshop and so on.
Mail shipping package: (packed with two 5-layer double corrugated carton)

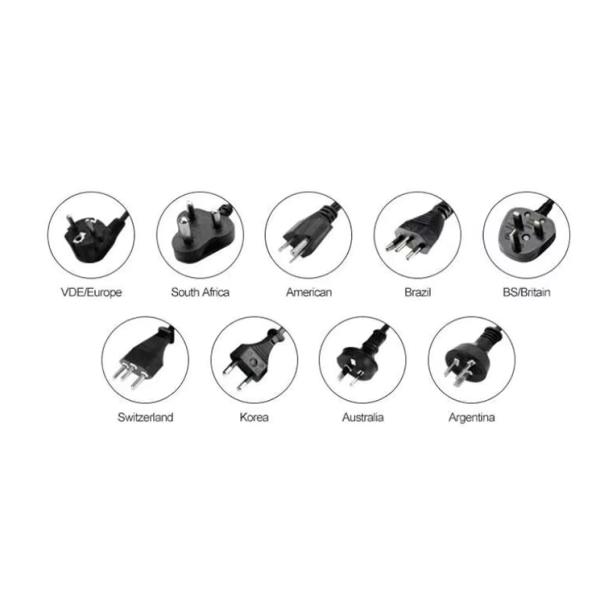

Plug for global districts
Company profile:
testing
testing
Yeoan was established in 2009. We have been engaged in the research and development, production and sales of video and audio products since establishment.
After more than ten years of hard work, we have become one of the leaders in this field.
Our main mission is to provide the best visual and auditory experience through a series of excellent
Audio-visual solutions, so that you can see and hear every detail accurately and clearly in your life and work.
We stand on the principle of reputation first and quality first, and we offer customized service for each customer
in different regions and countries;
The most important is that we provide customers with accurate and stable delivery time, and efficient and high-quality after-sales guarantee.
Our products have a high reputation and occupancy rate both in domestic and foreign markets through continuous efforts.
FAQ:
1.Are you factory or trading company?
We are the factory which have engaged in the research and development, production and sales of audio and video products since
establishment.
2.What is your main products?
Main products including projectors and its screen.
3.Is OEM & ODM available?
We can provide customized solutions according your requirments,such
as personalized feature or package or brands based on the MOQ.
4.What is the delivery time?
Generally is about 25 - 30 days if the products are out of stock or
customized order.
5.What is the Payment?
TT(bank transfer), LC at sight all will be accepted.
6.Sample available?
Yes, we can provide a DEMO machine for testing.
|
|
